Bestop offers a wide and diverse range of Cartridge Check Valves, proudly designed and manufactured as a professional hydraulic valve supplier. Our valves are engineered to meet the same high standards as leading brands such as Bosch Rexroth, Vickers, Yuken, and Sun Hydraulics, providing reliable performance and durability in a variety of hydraulic systems. By combining top-quality craftsmanship with more competitive pricing, Bestop delivers a solution that is both cost-effective and dependable.

We support individual buyers and small-batch orders, making it easy for customers of any size to access high-quality cartridge check valves. Each valve undergoes strict quality control to ensure stable operation, leak-free performance, and long service life. Whether you are upgrading an existing system, performing maintenance, or sourcing valves for a new project, Bestop provides a flexible and professional solution that meets your requirements without compromising quality.

✔ Directly interchangeable with Sun Hydraulics, HydraForce, Bosch Rexroth, and Yuken brands.
✔ Lower cost compared to OEM brands
✔ Small batch orders supported
✔ Fast delivery & stable supply
✔ 100% pressure tested before shipment
✔ High-strength materials for long service life
✔ Multiple cavity options available, Custom specifications supported

Characteristic Description

  • Pressure Losing Very Low.
  • Operating pressures up to 315bar(4565psi).
  • Hardened precision parts for long life and low leakage.
  • Part ion product accord with industry common cavity.
  • External parts zinc pained or oxidant.
  • Check valve’ s cracking pressure is optional.
  • Compact size.

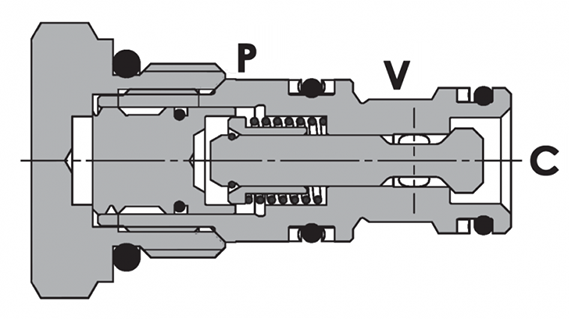

What is a Cartridge Check Valve?

A Cartridge Check Valve is a type of hydraulic valve designed to allow fluid flow in one direction while preventing reverse flow. It is called a “cartridge” valve because it is a compact, screw-in hydraulic component that can be installed directly into a manifold or valve body. This design provides reliable sealing, fast response, and minimal pressure drop. Cartridge check valves are widely used in hydraulic power units, mobile equipment, and industrial machinery to maintain system pressure, protect pumps, and ensure stable circuit operation. Their modular design simplifies installation, reduces leakage points, and enables easy maintenance or replacement.

Cartridge Type Check Valve

  • Description: Uses a spring-loaded poppet to control fluid flow. Opens quickly when flow moves in the correct direction and closes tightly to prevent backflow.
  • Applications: Hydraulic manifolds, mobile equipment, industrial machinery.
  • Features: Fast response, low leakage, high pressure rating.
  • Description: Uses a ball seated against a valve opening to allow flow in one direction. Spring-loaded for precise sealing.
  • Applications: Hydraulic power units, cylinder circuits, pressure-holding systems.
  • Features: Simple design, durable, easy to maintain, minimal pressure drop.
  • Description: The flow lifts a disc or spool to open; spring forces it back to close when flow reverses.
  • Applications: High-flow hydraulic circuits, heavy-duty machinery, manifold-mounted systems.
  • Features: Supports high flow rates, precise pressure control, modular installation.
  • Description: Opens using a pilot signal or pressure from another part of the system, providing remote control over check operation.
  • Applications: Complex hydraulic systems requiring coordinated flow control, sequence circuits.
  • Features: Flexible operation, precise control, reduces manual intervention.

Cartridge Check Valve Specifications

Model Pressure (bar) Flow (L/min) Cracking Pressure (bar) Cavity
CCV-100 250 60 3 SAE
CCV-200 315 80 5 CETOP
CCV-300 350 100 7 ISO

Directional Control Valve Function Choice

Directional Control Valve Function Choice

Model Choice Spring Ranges Type of Pin Max.Flow
BDF04-00 (515 downloads) 315bar Poppet 18L/min
BDF08-01 (517 downloads)     30L/min
BDF08-02 (506 downloads)   Ball
BDF10-01 (565 downloads)   Poppet 113L/min
BDF10-05 (524 downloads)     75L/min
BDF10-06 (509 downloads)
BDF12-01 (527 downloads)   240bar 113L/min
BDF16-00 (510 downloads)     200L/min
BDF16-02 (508 downloads)     300L/min
BDF20-00 (509 downloads)     350L/min
BDF20-03 (523 downloads)     400L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BFDF08-00 (481 downloads) 240bar Poppet 30L/min
BFDF10-00 (524 downloads)      75L/min
BFDF10-02 (475 downloads)     113L/min
BFDF32-00 (518 downloads) 350bar   400L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BYDF04-00 (503 downloads) 240bar Poppet 18L/min
BYDF08-01 (504 downloads)   Ball 30L/min
BYDF10-00 (500 downloads)   Poppet 45L/min
BYDF10-01 (523 downloads) 350bar   75L/min
BYDF10-02 (509 downloads) 240bar   45L/min
BYDF12-00 (481 downloads) 315bar   200L/min
BYDF16-00 (471 downloads)     380L/min
BFYDF20-01 (506 downloads)   207bar/350bar 35L/min
BFYDF20-02 (506 downloads)     60L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BWYDF10-00 (529 downloads) 240bar Poppet 75L/min
BWYDF12-00 (487 downloads) 315bar   200L/min
BWYDF16-00 (558 downloads)     350L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BSF06-01 (526 downloads) 240bar Poppet 15L/min
BSF08-00 (489 downloads)     18L/min
BSF10-00 (532 downloads)     30L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BYYS08-00 (495 downloads) 240bar   18L/min
BYYS10-00 (456 downloads)     30L/min
BFYYS20-01 (507 downloads) 207bar/350bar   50L/min
BFYYS20-02 (457 downloads)     100L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BYHF08-225 (543 downloads) 210bar Spool 20L/min
BYHF10-225 (526 downloads)     38L/min
BYHF10-232 (565 downloads)     18L/min
BYHF10-24C (529 downloads)     45L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BYHF10-33HO (529 downloads) 350bar   25L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BYHF10-33LO (538 downloads)     25L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BYHF10-33LC (529 downloads)     25L/min
Model Choice Spring Ranges Type of Pin Max.Flow
BSHF06-227 (468 downloads) 315bar Poppet 30L/min
BSHF06-227E-02 (483 downloads)
Model Choice Spring Ranges Type of Pin Max.Flow
BJHF06-227 (502 downloads)   Poppet 30L/min

Cartridge Check Valve Applications

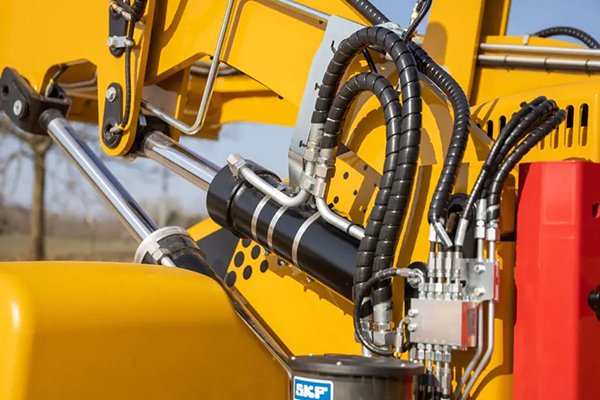

Hydraulic Equipment

Industrial Machinery

Agricultural Equipment

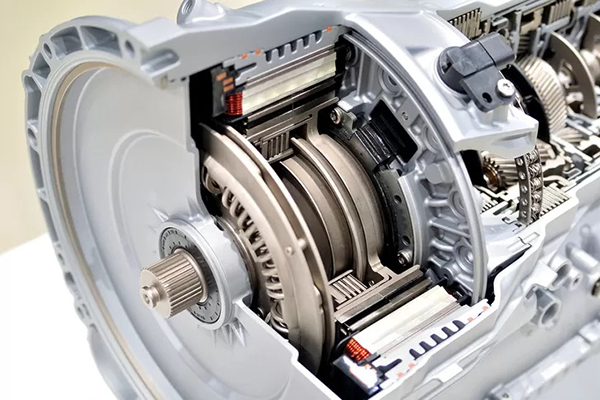

Automotive Industry

Marine Hydraulic Systems

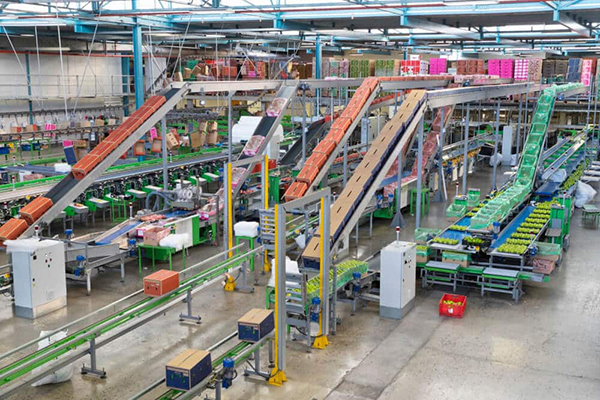

Material Handling Equipment

How to Choose the Right Cartridge Check Valve?

System Pressure

Ensure the valve can handle your system’s maximum operating pressure to avoid damage and ensure proper flow.

Flow Rate

Match the valve’s flow capacity to your system’s requirements to maintain performance without excessive pressure drop.

Cracking Pressure

Select a valve with the correct cracking pressure for your system’s needs to ensure smooth operation and prevent premature opening.

Cavity & Thread Compatibility

Choose a valve that fits your system’s specific cavity type and thread size to ensure secure installation and leak-free operation.

Material & Durability

Opt for high-quality materials, like steel or stainless steel, to withstand high pressures, harsh environments, and extended use.

Pressure Drop

Minimize pressure loss by selecting a valve designed for low pressure drop to maintain system efficiency and avoid performance issues.

Frequently Asked Questions

Cracking pressure is the minimum pressure at which the valve will open. Choose a valve with cracking pressure close to your system’s operating conditions to ensure it opens only when necessary. Too high or too low of cracking pressure can affect system performance.

Yes, our valves are designed to be compatible with most major brands, including Sun Hydraulics, HydraForce, and Bosch Rexroth, offering the same performance and fit at a more competitive price.

Our cartridge check valves are made of high-quality materials such as steel or stainless steel, designed to withstand high pressure, resist corrosion, and provide long-lasting durability.

Installation involves screwing the valve into a compatible cavity in your hydraulic manifold. Ensure the thread size and cavity type match your system’s specifications for a secure, leak-free installation.

Leaks can occur due to improper installation, mismatched cavities, or wear over time. Ensure correct installation and select a valve with suitable pressure and flow ratings for your system to minimize leak risks.

To select the right size, consider your system’s pressure, flow rate, and cavity type. Choose a valve that matches or exceeds your system’s specifications, ensuring reliable operation and long-term performance.



Yes, all of our cartridge check valves undergo 100% pressure and leakage testing before shipment to ensure reliable, leak-free operation.
